Technical data sheet · Modular · Pro

Vitte Max 9

9 bottles in 3 modules with a single touch screen and built-in payments: the complete wine-by-the-glass station for restaurants, bars and wine shops.

Get a quote on WhatsAppSee specifications
9
750 ml bottles
6
temperature zones
10.1"
touch screen
20+ days
open wine preserved

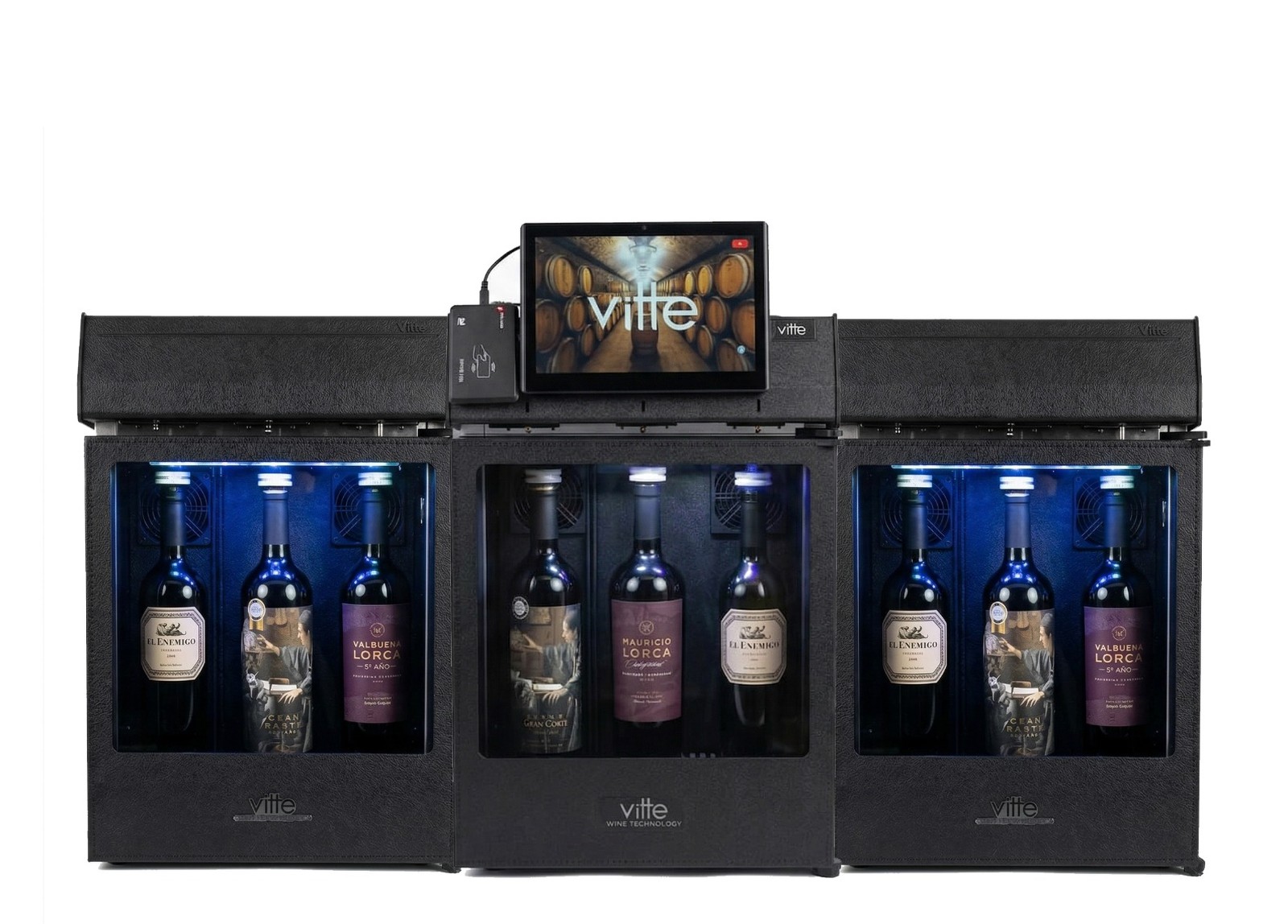

Vitte Max 9

What it does

1

Modular

3-bottle modules joined with a single tablet. If one module needs service, the rest keep working.

2

Pay per glass Pro

Pay with a Mercado Pago QR code in Argentina or PIX in Brazil, or with the customer's prepaid balance.

3

Customers with balance Pro

Customers sign up by scanning the QR on the screen. They add balance at the till or from their phone and pour with their account.

4

Order from the phone Pro

Customers pick the wine and pour size on their phone and confirm at the machine.

5

Reports and cash Pro

Consumption by customer, wine and machine, plus a cash report. Everything exports to Excel from the web panel.

6

Wines and prices from the web

Add a wine from a photo of its label (AI), set the 3 pour sizes and prices are calculated for you.

Cooling combinations

Each module can keep its 3 bottles at the same temperature or, with the divider, set the left bottle apart in a cold zone. Tap each module to see the result.

All possible combinations

0whites or rosés0reds

Build your own

Choose what goes in each module.

Module 1
Module 2
Module 3

Guide temperatures: whites 6 to 8 °C (43–46 °F), reds 14 to 16 °C (57–61 °F). Each zone: 5 to 19 °C. The left zone must be the same as or colder than the right one, with a maximum difference of 8 °C.

Specifications

Capacity and service

Bottles
9 × 750 ml (3 modules)
Pour sizes
3 configurable: tasting, half glass and glass
Preservation
Argon or nitrogen, over 20 days
Pressurization
Bottle Lock (Vitte patent)
Display
10.1" touch tablet
Languages
Spanish, Portuguese and English

Cooling

Temperature zones
6 (3 modules with 2 zones each, with divider)
Range
5 °C to 19 °C (41 °F to 66 °F)
Time to serve
Bottle at room temperature: about 2 h to reach its temperature (to pour right away, load it chilled)
Refrigeration
1/6 HP compressor per module, R134A refrigerant, max. low-side pressure 3 PSI
Insulation
Double chamber with UV protection
Lighting
Interior LED

Electrical

Power supply
220 V, 50/60 Hz (110 V on request)
Power draw
690 W (230 W per module)

Physical

Dimensions (W × H × D)
1210 × 664 × 450 mm
Weight
84 kg (3 modules of 28 kg)
Color
Black with stainless steel details
Packaging
3 export MDF crates (one per module), 480 × 760 × 550 mm each
Origin
Argentina or Brazil · HS 8476.21

Dimensions and installation

Place it on a firm, level surface. Keep the ventilation clearance free, also when it goes inside a cabinet.

The lower door hinge must rest on the firm surface. Never leave the unit with the door overhanging the edge of the counter or cabinet: the hinge can bend and the door can come off.
Protect the furniture. The unit is a refrigerator: there may be condensation or water leaks, for example during defrost. If you place it on wood or any material that moisture can damage, take precautions (a tray or a waterproof mat underneath).

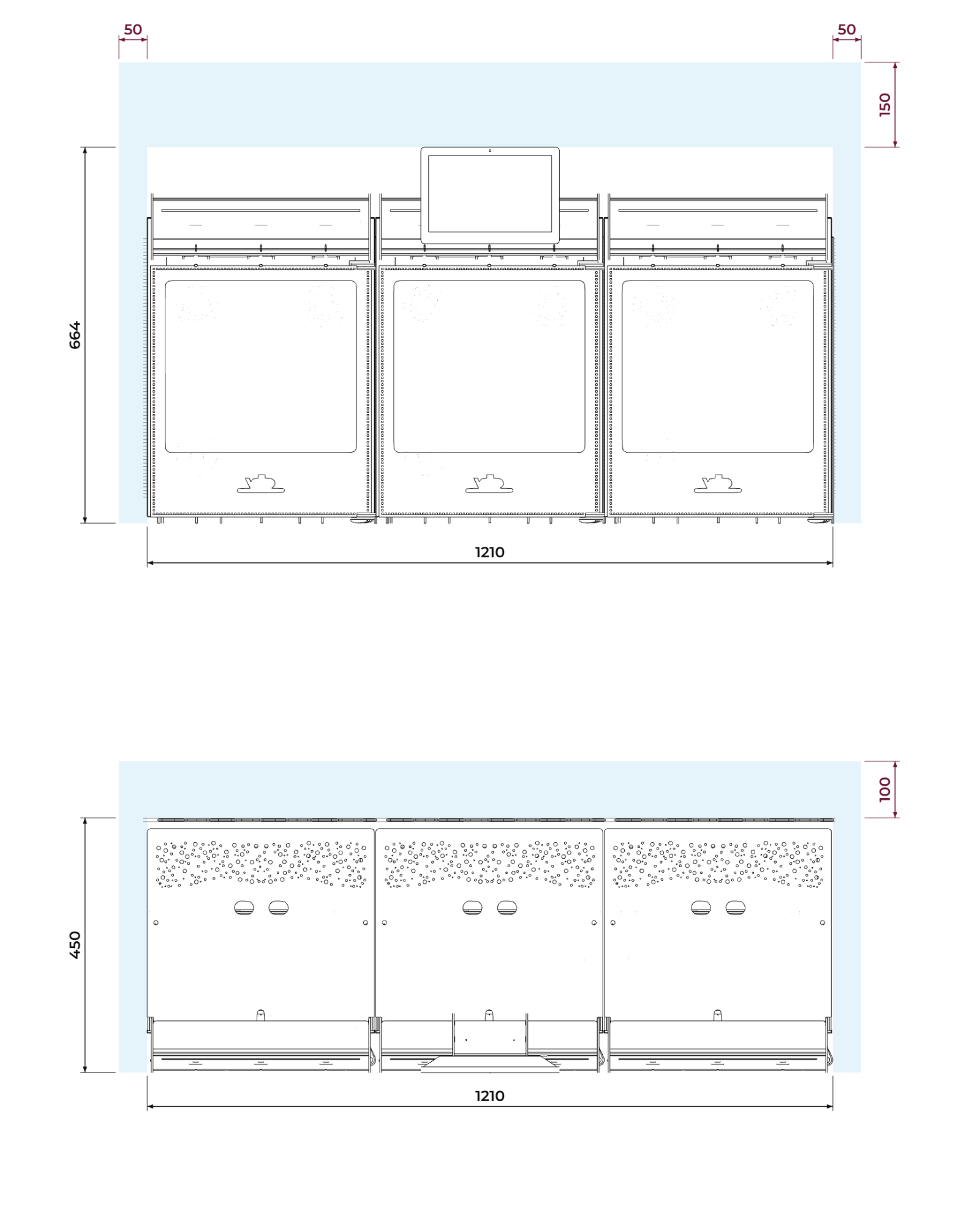

Installation dimensions and ventilation
Installation dimensions and ventilation
Dimensions in mm. In light blue, the clearance for ventilation.
1210 × 664 × 450 mm
unit (width × height × depth)
1310 × 814 × 550 mm
minimum space with ventilation
10 · 5 · 15 cm
free behind · each side · above
37 cm
free in front to open the door fully
Hinge supported
the door never overhanging the edge of the furniture

Included

  • Pressure regulator and hose, according to the region and the terms of sale
  • 3 acrylic dividers (one per module)
  • 2 «step» accessories for bottles with a tapered neck
  • Access to the web management panel
  • Installation video call with technical service
  • 12-month warranty against manufacturing defects
Gas cylinder: according to the region and the terms of sale. Usually an external cylinder bought locally (½ m³ or larger, depending on local availability; about 175 bottles per ½ m³) or supplied by Vitte; a small internal 800 cm³ cylinder where available. Check with Vitte for your region.
