Technical data sheet · 2 temperatures

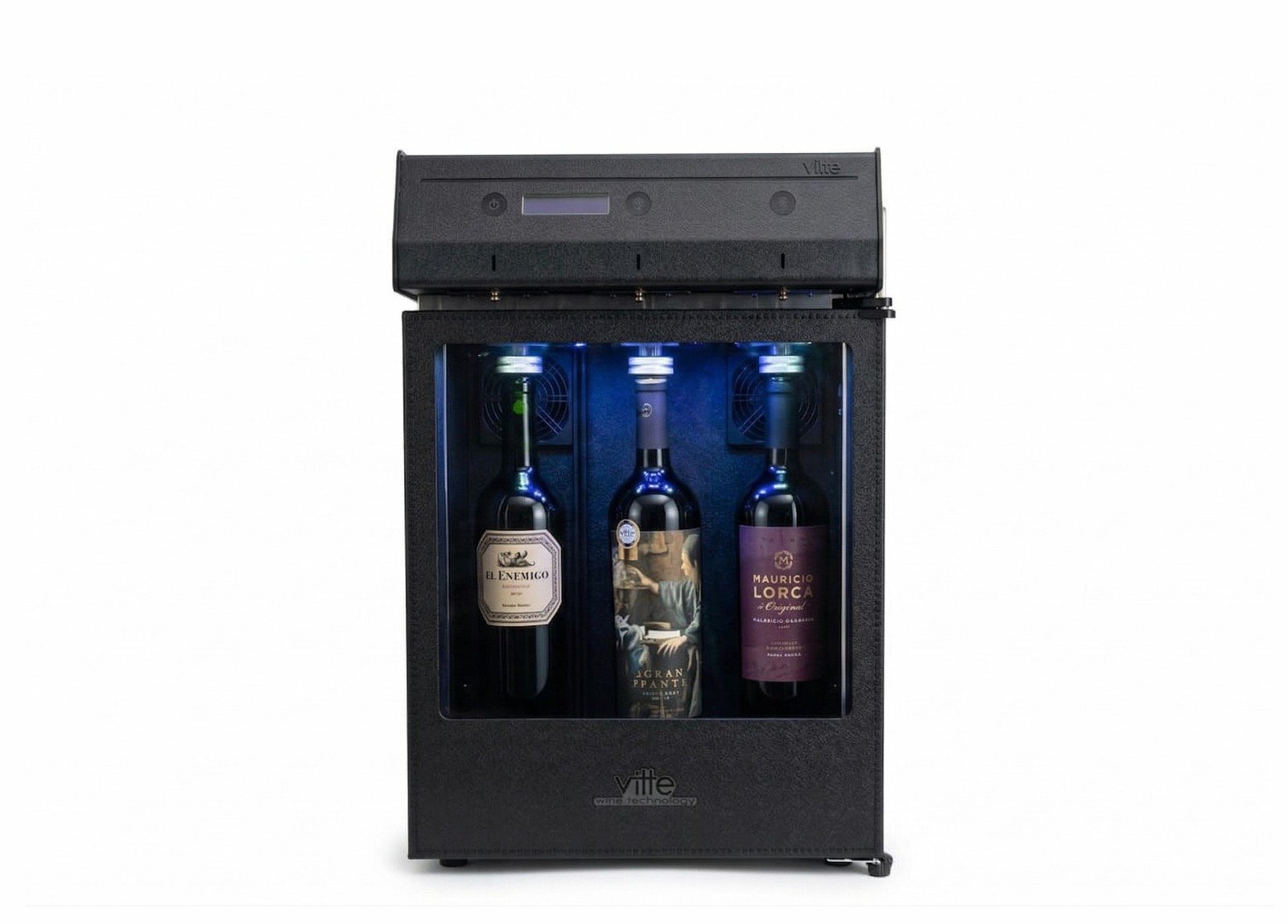

Vitte Classic

Wine-by-the-glass dispenser for 3 bottles with a display and 3 buttons and two temperature zones. Run it from the front: no tablet, internet or web panel needed.

Get a quote on WhatsAppSee specifications
3
750 ml bottles
2
temperature zones
3
buttons and display
20+ days
open wine preserved
Vitte Classic

What it does

1

Display and 3 buttons

Each button pours from its own position. Works standalone, with no tablet, internet or web panel.

2

Set pour or free pour

Tasting, half glass or glass with a countdown, or free mode: it pours while you hold the button.

3

2 temperatures

Cold zone for bottle 1 and a warmer zone for bottles 2 and 3, separated by an acrylic divider.

4

Per-position calibration

Each spout is adjusted separately so every pour is accurate.

5

Bottle Lock preservation

Pressurized system with argon or nitrogen (Vitte patent): an open bottle lasts over 20 days without oxidizing.

Cooling combinations

With the divider, the left bottle sits in a cold zone for a white and the other two stay warmer for reds. Without it, all 3 the same.

All possible combinations

0whites or rosés0reds

Guide temperatures: whites 6 to 8 °C (43–46 °F), reds 14 to 16 °C (57–61 °F). Each zone: 5 to 19 °C. With the left zone below 13 °C, the right zone runs at least 6 °C warmer.

Specifications

Capacity and service

Bottles
3 × 750 ml (1 module)
Pour sizes
3 configurable: tasting, half glass and glass
Preservation
Argon or nitrogen, over 20 days
Pressurization
Bottle Lock (Vitte patent)
Display
16 × 2 character LCD display and 3 buttons
Languages
One language, set for the destination country (Spanish or Portuguese)

Cooling

Temperature zones
2 (bottle 1 / bottles 2 and 3, with divider)
Range
5 °C to 19 °C (41 °F to 66 °F)
Time to serve
Bottle at room temperature: about 2 h to reach its temperature (to pour right away, load it chilled)
Refrigeration
1/6 HP compressor per module, R134A refrigerant, max. low-side pressure 3 PSI
Insulation
Double chamber with UV protection
Lighting
Interior LED

Electrical

Power supply
220 V, 50/60 Hz (110 V on request)
Power draw
230 W

Physical

Dimensions (W × H × D)
403 × 585 × 450 mm
Weight
28 kg (32 kg packed)
Color
Black with stainless steel details
Packaging
Export MDF crate, 480 × 760 × 550 mm
Origin
Argentina or Brazil · HS 8476.21

Dimensions and installation

Place it on a firm, level surface. Keep the ventilation clearance free, also when it goes inside a cabinet.

The lower door hinge must rest on the firm surface. Never leave the unit with the door overhanging the edge of the counter or cabinet: the hinge can bend and the door can come off.
Protect the furniture. The unit is a refrigerator: there may be condensation or water leaks, for example during defrost. If you place it on wood or any material that moisture can damage, take precautions (a tray or a waterproof mat underneath).

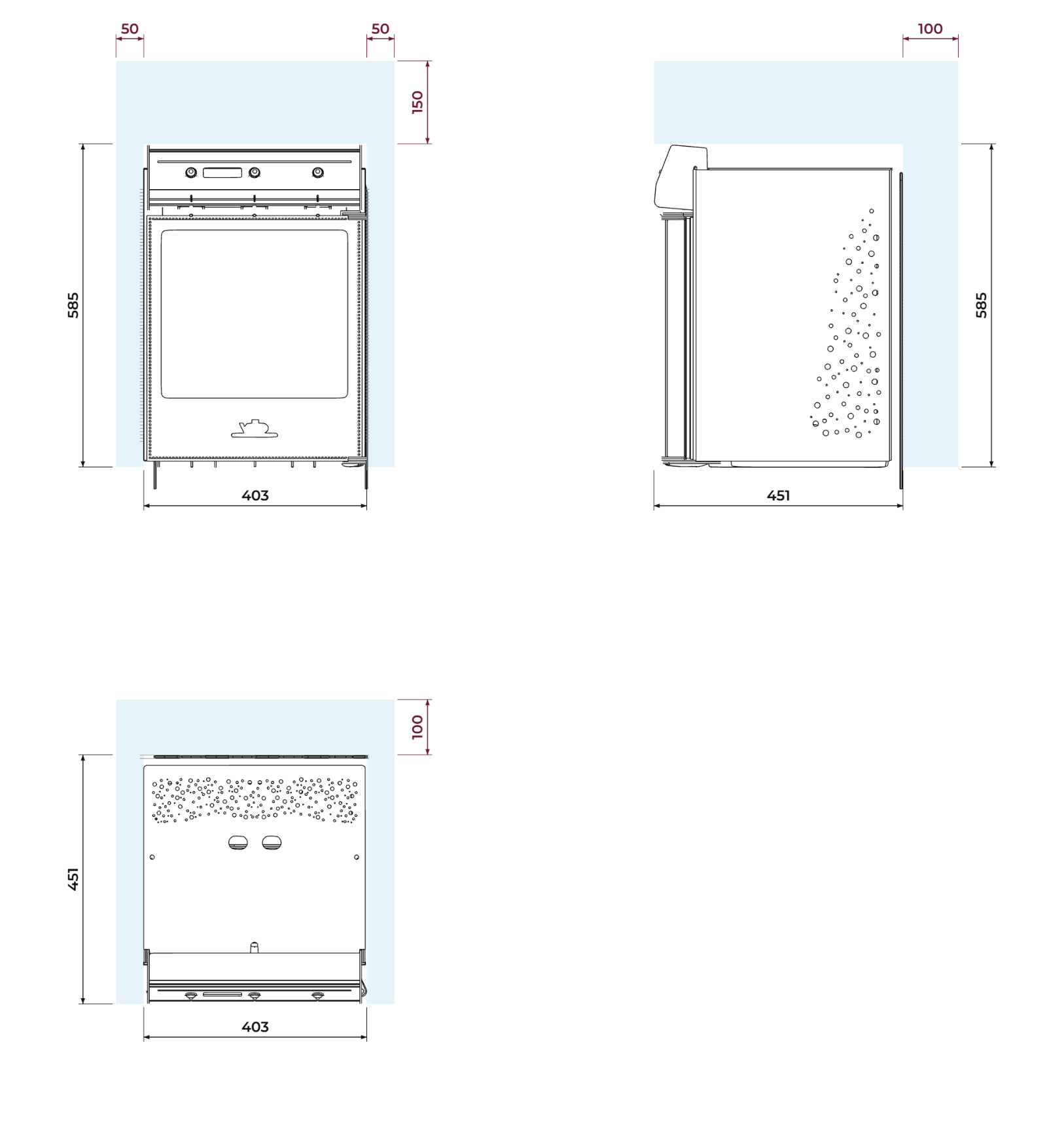

Installation dimensions and ventilation
Installation dimensions and ventilation
Dimensions in mm. In light blue, the clearance for ventilation.
403 × 585 × 450 mm
unit (width × height × depth)
503 × 735 × 550 mm
minimum space with ventilation
10 · 5 · 15 cm
free behind · each side · above
37 cm
free in front to open the door fully
Hinge supported
the door never overhanging the edge of the furniture

Included

  • Pressure regulator and hose, according to the region and the terms of sale
  • Acrylic divider for the two temperature zones
  • 2 «step» accessories for bottles with a tapered neck
  • Installation video call with technical service
  • 12-month warranty against manufacturing defects
Gas cylinder: according to the region and the terms of sale. Usually an external cylinder bought locally (½ m³ or larger, depending on local availability; about 175 bottles per ½ m³) or supplied by Vitte; a small internal 800 cm³ cylinder where available. Check with Vitte for your region.
