Technical data sheet · Touch screen

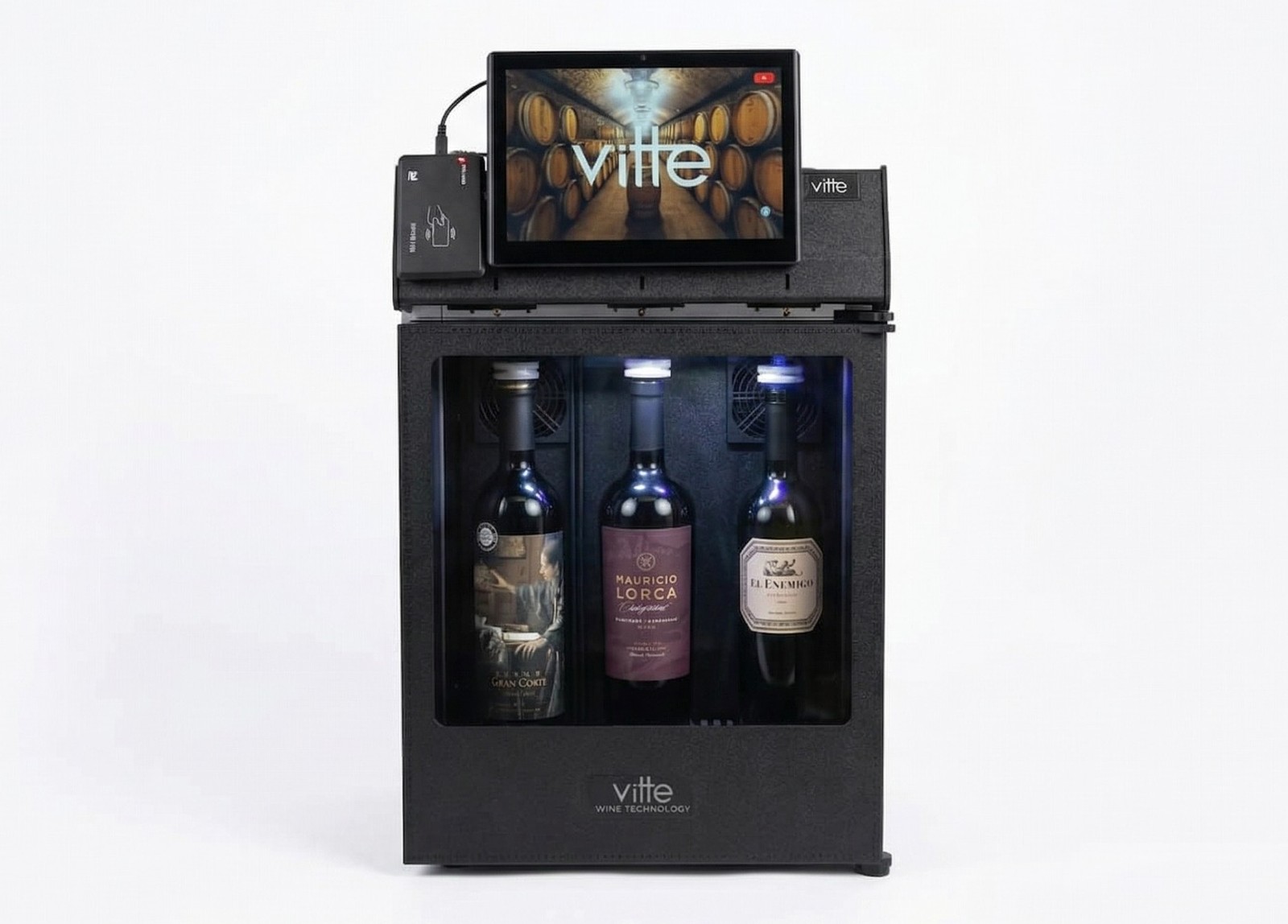

Vitte Agile

Wine-by-the-glass dispenser for 3 bottles with a touch screen: customers see each wine with its pour sizes and tasting notes and pour on their own. Wines and prices are managed from the web panel.

Get a quote on WhatsAppSee specifications
3
750 ml bottles
2
temperature zones
10.1"
touch screen
20+ days
open wine preserved
Vitte Agile

What it does

1

Touch screen

Each wine shown with its pour sizes, prices and tasting notes. Customers choose and pour on their own.

2

Wines and prices from the web

Add a wine from a photo of its label (AI), set the 3 pour sizes and prices are calculated for you.

3

On-screen indicators

Level of each bottle, connection status and temperatures at a glance.

4

2 temperatures

Cold zone for bottle 1 and a warmer zone for bottles 2 and 3, separated by an acrylic divider.

5

Bottle Lock preservation

Pressurized system with argon or nitrogen (Vitte patent): an open bottle lasts over 20 days without oxidizing.

6

Per-position calibration

Each spout is adjusted separately so every pour is accurate.

Cooling combinations

With the divider, the left bottle sits in a cold zone for a white and the other two stay warmer for reds. Without it, all 3 the same.

All possible combinations

0whites or rosés0reds

Guide temperatures: whites 6 to 8 °C (43–46 °F), reds 14 to 16 °C (57–61 °F). Each zone: 5 to 19 °C. The left zone must be the same as or colder than the right one, with a maximum difference of 8 °C.

Specifications

Capacity and service

Bottles
3 × 750 ml (1 module)
Pour sizes
3 configurable: tasting, half glass and glass
Preservation
Argon or nitrogen, over 20 days
Pressurization
Bottle Lock (Vitte patent)
Display
10.1" touch tablet
Languages
Spanish, Portuguese and English

Cooling

Temperature zones
2 (bottle 1 / bottles 2 and 3, with divider)
Range
5 °C to 19 °C (41 °F to 66 °F)
Time to serve
Bottle at room temperature: about 2 h to reach its temperature (to pour right away, load it chilled)
Refrigeration
1/6 HP compressor per module, R134A refrigerant, max. low-side pressure 3 PSI
Insulation
Double chamber with UV protection
Lighting
Interior LED

Electrical

Power supply
220 V, 50/60 Hz (110 V on request)
Power draw
230 W

Physical

Dimensions (W × H × D)
403 × 664 × 450 mm
Weight
28 kg (32 kg packed)
Color
Black with stainless steel details
Packaging
Export MDF crate, 480 × 760 × 550 mm
Origin
Argentina or Brazil · HS 8476.21

Dimensions and installation

Place it on a firm, level surface. Keep the ventilation clearance free, also when it goes inside a cabinet.

The lower door hinge must rest on the firm surface. Never leave the unit with the door overhanging the edge of the counter or cabinet: the hinge can bend and the door can come off.
Protect the furniture. The unit is a refrigerator: there may be condensation or water leaks, for example during defrost. If you place it on wood or any material that moisture can damage, take precautions (a tray or a waterproof mat underneath).

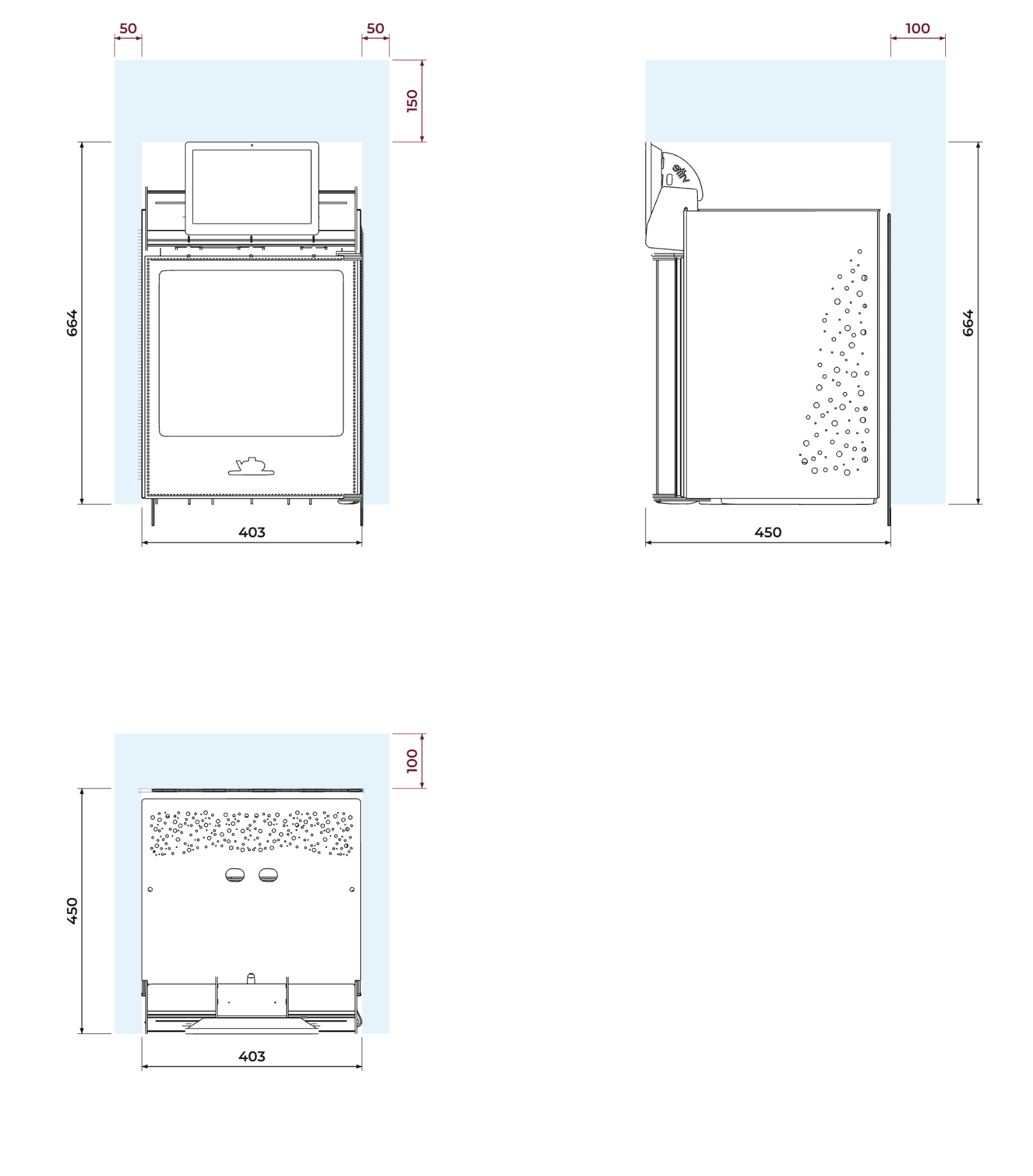

Installation dimensions and ventilation
Installation dimensions and ventilation
Dimensions in mm. In light blue, the clearance for ventilation.
403 × 664 × 450 mm
unit (width × height × depth)
503 × 814 × 550 mm
minimum space with ventilation
10 · 5 · 15 cm
free behind · each side · above
37 cm
free in front to open the door fully
Hinge supported
the door never overhanging the edge of the furniture

Included

  • Pressure regulator and hose, according to the region and the terms of sale
  • Acrylic divider for the two temperature zones
  • 2 «step» accessories for bottles with a tapered neck
  • Access to the web management panel
  • Installation video call with technical service
  • 12-month warranty against manufacturing defects
Gas cylinder: according to the region and the terms of sale. Usually an external cylinder bought locally (½ m³ or larger, depending on local availability; about 175 bottles per ½ m³) or supplied by Vitte; a small internal 800 cm³ cylinder where available. Check with Vitte for your region.
